newest High Performance Arranger in the acclaimed Pa-Series of Professional Arrangers!

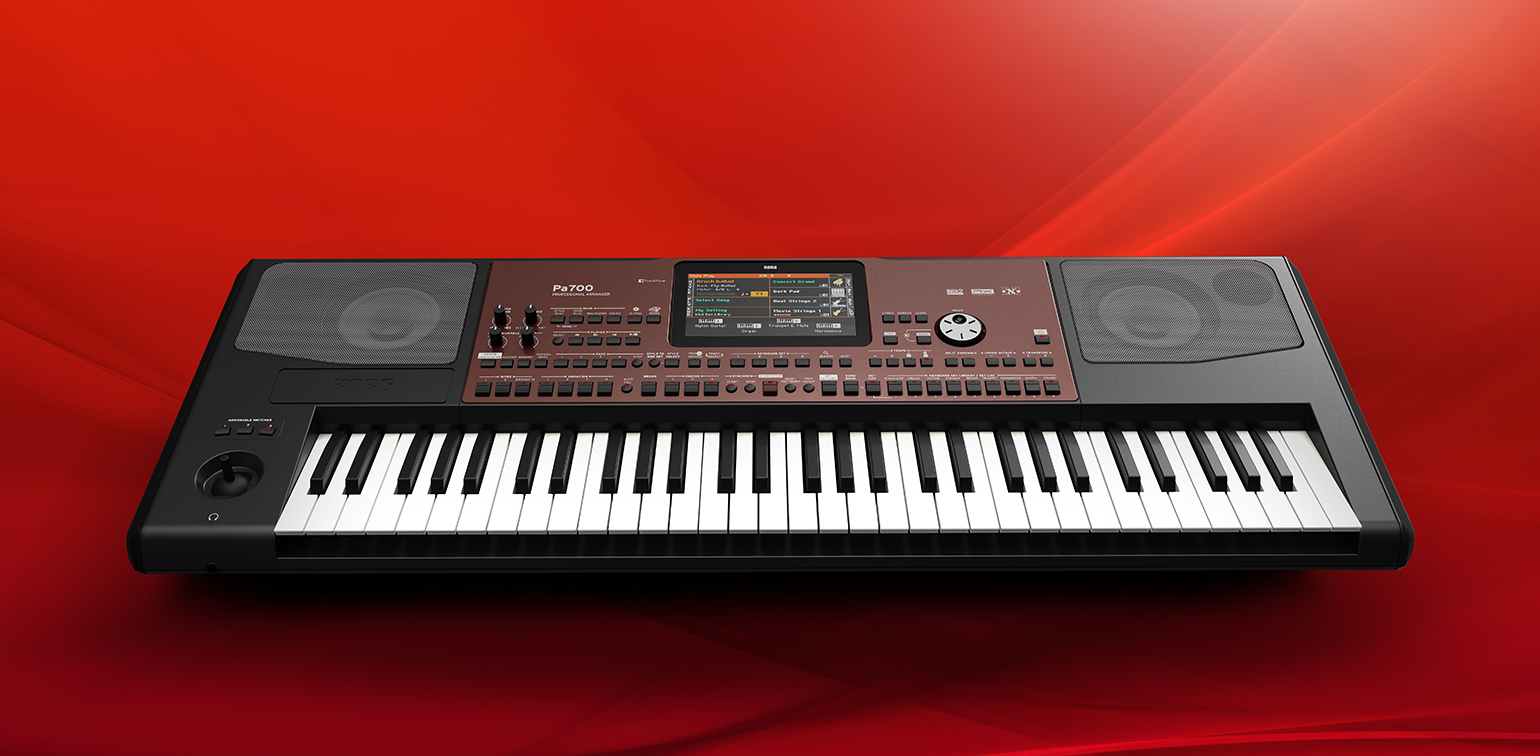

The Pa700 is a concept that combines a slim profile with a professional visual motif. The 2x25 Watt
amplifiers drive the 2 loudspeakers in a bass-reflex enclosure to generate a rich, full-bodied listening
experience. The main panel has been optimized to ensure that all controls are ergonomically positioned
and intuitively located to make every performance feel smooth and natural.

The Pa700 relies on KORG’s advanced EDS-X (Enhanced Definition Synthesis-expanded) sound engine,
and comes complete with over 1,700 ready-to-play sounds. This realistic collection offers a vast
gathering of classic and contemporary keyboards, band and orchestral instruments, plus electronic and
acoustic instruments—from techno to folk. Included are two new multi-layer stereo grand piano (with
damper and body resonance), plus electric pianos from the acclaimed KORG SV-1 Stage Piano

The Pa700 delivers over 370 Styles, straight out of the box. Each one is a fully-realized musical
environment dedicated to creating a particular musical style. With so many to choose from, the Pa700
can provide instant access to a vast and robust range of musical genres. Each Style features 4 Fill Ins +
Break patterns, one for each variation. Using the new Auto Fill function they can be automatically
recalled as you move between the four variations. The Pa700 has 1,152 locations for you to save your
new Styles and settings.

In addition, each Style can be enhanced by using the four Pads. Each Pad can add a one-time or
repeating riff, a percussion part, an accent sound, or even a sound effect.


Keyboard  61 keys (C2 – C7) with velocity

System     Upgradable operating system, Multitasking, Load while play

Sound Generator  EDS-X (Enhanced Definition Synthesis – eXpanded)Filters with resonance, 3-band EQ on each Sound

Polyphony   128 voices, 128 oscillators

Effects   Accompaniment/Song: 2 insert effects; 2 master effects (148 types)Keyboard Sounds: 1 insert effect; 2 master effects (148 types)Final mastering effects: Limiter, Master EQVoice Processor: 5 FX, 28 Factory, 64 User PresetsGuitar Processor: 3 FX, 45 Factory, 64 User Presets

Sounds / Drum Kits  Factory: More than 1,700 Factory Sounds including a multilayer Stereo Piano with damper and body resonance, GM/XG sound sets and 106 Drum KitUser: 512 Sounds, 256 Drum KitsDigital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effectDNC (Defined Nuance Control) Technology, Natural Ambience DrumsFull Sounds/Drum Kits editing

Sampling  128 MB compressed (equivalent to 256 MB linear data);Loads KORG, WAV, AIFF and SoundFont™ formatsSaves KORG, WAV and AIFF formatsFull Edit, Time Slice

Styles  Factory: More than 370 Factory Styles, freely reconfigurable setsUser: 1,152 locations, including User and Direct banksEight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style;Style Settings (Sounds and Arranger parameters) on each StyleGuitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)Style/Pad Record with Step Record, Track and Event EditStyle Creator Bot (MIDI Song to Style Converter)Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode

Chord Sequencer  Chord Sequence recorder and player in Style Play modeChord Sequences can be saved to Style and SongBook EntriesEdit functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF

Keyboard Set Library  Memorize Keyboard Sound settingsFactory: More than 290 Factory Keyboard Sets, freely reconfigurableUser: 864 locations, including User and Direct banks‘My Setting’ special Keyboard Set

KAOSS FX  Automatic MIDI FX generatorMore than 65 Factory Presets

Song Play  Supported formats: MID, KAR, MP3+Lyrics, MP3+GSelect, Start/Stop, Home, Rewind and Fast Forward controlsLyrics, Score, and Chord data can be displayed on screen, or on an external video monitorMarkers with Add, Delete, Edit and Loop functionsJukebox function

MP3 Player / Recorder  MP3 Player and RecorderTranspose (+6/-5 semitones), Tempo change (±30%)Vocal RemoverRecords MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, and KAOSS Effects

Sequencer  Quick Record (Backing Sequence), Multitrack and Step Record functionsFull-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format

SongBook  Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modesUser definable Set Lists, with Entries selectable from the control panelFiltering and sorting options

Compatibility Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads ‘i-Series’ models: Styles

Pads   Four Assignable Pads + Stop buttonsPad Record function

General Controls   Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, TempoLock; Metronome On/Off, Dial, Search, Shift Split, Record

Scale Controls  Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets

Control Inputs   Damper pedal (supports half-pedaling with the optional DS-1H pedal)Assignable pedal/switch

Audio Inputs  Line (Left/Right): 1/4” jacks, +20dBm, 12k OhmMic/Guitar (Left): 1/4” jack, with Gain control (0 — +40dB)12k ohm (Mic) / 500k ohm (Guitar)

Audio Outputs  Left/Right, 1/4” jack, +21dBm, 0.003% THD+N@+18dBmHeadphone output (1/4” jack), 16-200 Ohms (50 Ohms suggested)

Speaker System  Amplification: 2 x 25WSpeakers: 2 x Dual Cone Speakers in Bass Reflex Box

MIDI   IN, OUT standard MIDI connectorsUSB to MIDI using the USB portsHOST: memory and controllers, DEVICE: personal computersEight user definable MIDI Setups

USB   Type A (Host), Type B (Device)2.0 Hgh-Speed connections (480 Mbit/s). Low-Speed (1.5 Mbit/s) and Full-Speed (12 Mbit/s) devices can only be connected through a High-Speed USB hub.

Storage  Internal memory: 960 MBUSB external drives (drive not included)microSD card (not included); rear panel slot with plastic cover

Display  7” Wide capacitive color TouchView™ TFT display

Video Out  HDMI connector

Clock  Internal System Clock

Power Consumption  100-240 Volts, 50/60 Hz, 25 Watt normal / < 0.3 Watt in standby

Dimensions (W x D x H)  1030 x 378.3 x 132 mm/40.55" x 14.89" x 5.2" (without music stand; height with music rest: 355.8 mm / 14”)

Weight  9.9 kg/21.82 lbs

Included Items   AC Power Cable, Music Stand, Quick Guide manual

Accessories  EXP-2 Foot Controller, XVP-10 Expression/Volume PedalDS-1H Damper Pedal (supports half-pedal)PS-1, PS-3 Pedal SwitchVOX V860 volume pedal
